4G / 5G Puck
CA-072738-01
4G / 5G Screw Mount Puck Antenna
4G / 5Gn7880 mm
Vehicles · Kiosks · Alarm Panels
— Application

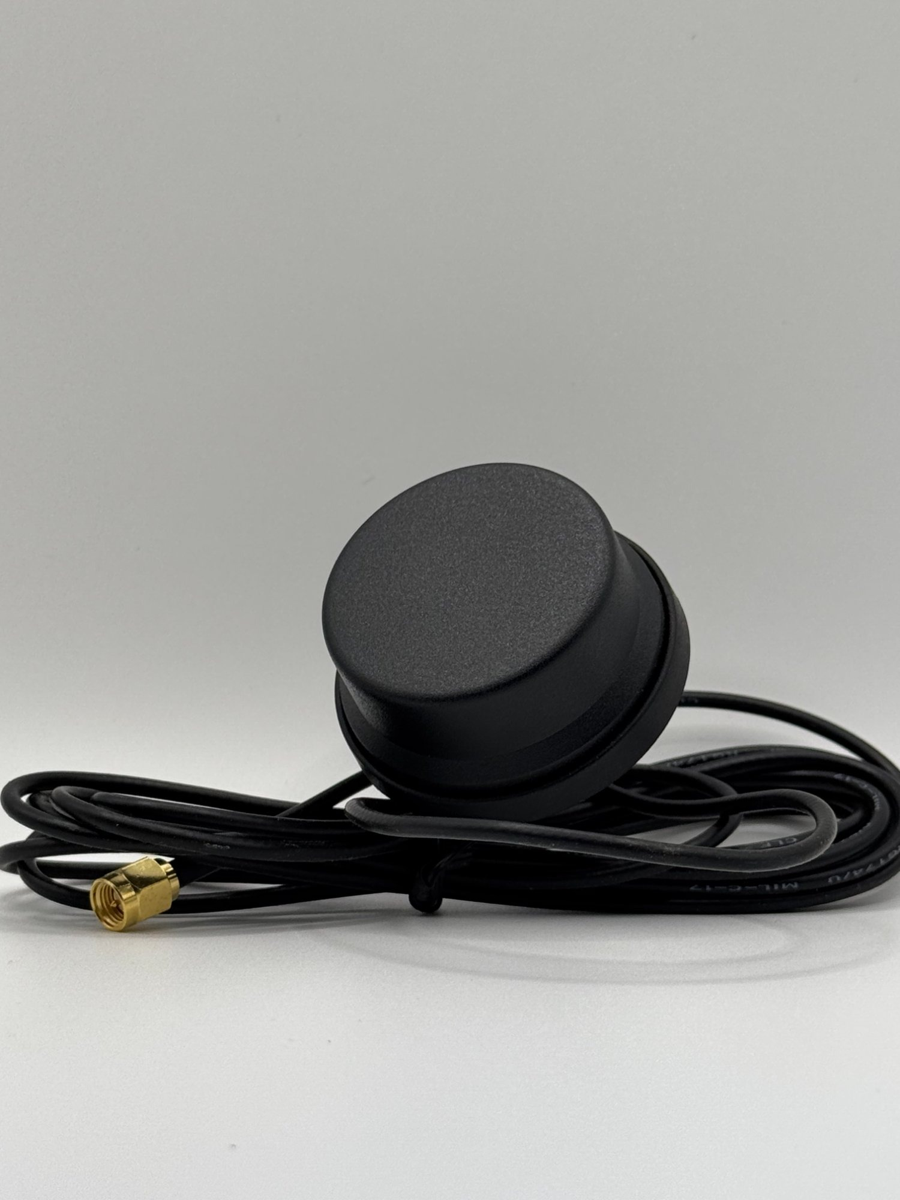

The CA-072738-01 is a low profile 4G and 5G puck antenna for vehicle roofs, kiosks, panels and cabinets. It covers 700 to 960 MHz, 1575 to 2700 MHz and the 5G n78 band from 3300 to 3800 MHz in an 80 mm UV stabilised housing, with a single screw through mount and 3 m of RG174 to an SMA male plug.
— Technical Specifications
RF Performance
| Frequency | 700-960 MHz | 1575-2700 MHz | 3300-3800 MHz |
| Bands | B28, B5, B8 | B1, B3, B7, B40 | n78 |
| Gain | 1-4 dBi |
| VSWR | < 2.5 |
| Impedance | 50 Ohm |
| Polarisation | Linear vertical |
Mechanical
| Housing | 80 mm diameter, black UV stabilised ABS |
| Mounting | Screw through stud, 12 mm hole, integrated gasket |
| Cable | 3 m RG174, custom lengths on request |
| Connector | SMA male, gold plated |
| Operating temperature | -40 to +85 C |
— Deployment Contexts
01
Fleet and telematics
Roof mount with internal cable exit and an integrated gasket
02
Kiosks and vending
Low profile install on the top of the cabinet
03
5G ready devices
includes the n78 band at 3300 to 3800 MHz
