High Gain Multiband
DG900MB-HG
High Gain Multiband Antenna
Fringe 4G · Security · Rural IoT
— Application
The DG900MB-HG is the antenna to reach for when a site sits at the edge of coverage. Its 7 dBi of gain from 700 to 1000 MHz recovers links that a standard antenna cannot hold, whether on a regional alarm panel, a base station or a vehicle. The element sits in a 45 cm fibreglass radome on a 12.7 mm stud, with FME, SMA, BNC or TNC on 2.5 m, 5 m or 10 m of low loss ALSR195.
— Technical Specifications
RF Performance
| Frequency | 680-960 MHz | 1710-2700 MHz |
| Gain | 7.0 dBi @ 700-1000 MHz | 3.5 dBi @ 1710-2600 MHz |
| VSWR | < 2.0:1 over the specified bandwidth |
| Impedance | 50 Ohm |
| Max power | 25 W |
| Tuning | Factory pretuned |
Mechanical
| Length | 450 mm |

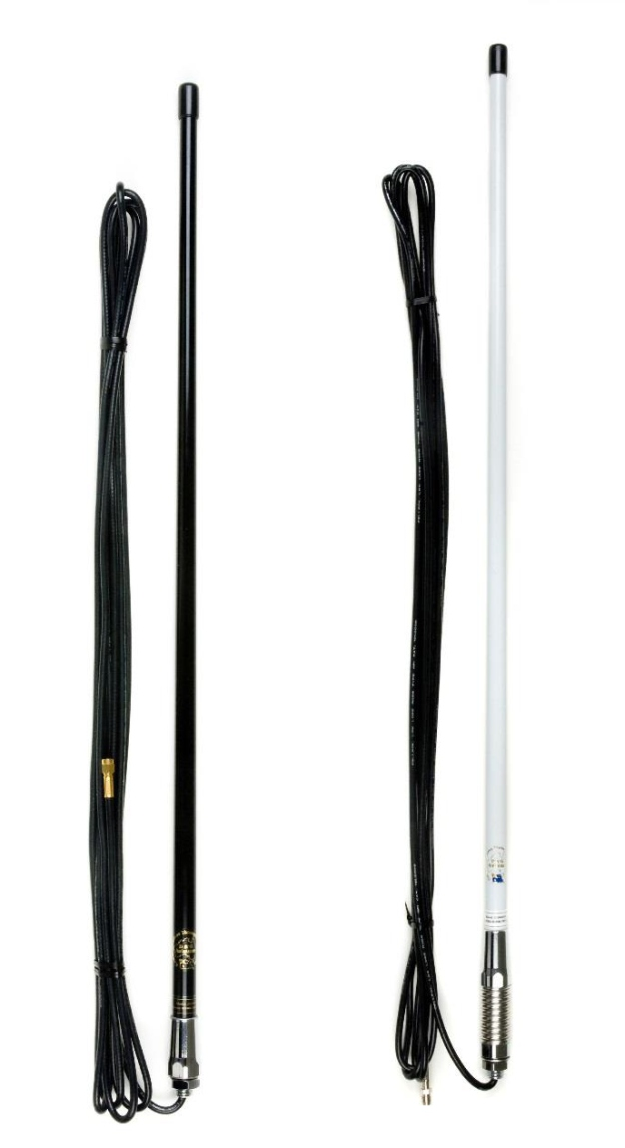

| Radome | 16 mm fibreglass tube, black or white |
| Mounting | 12.7 mm threaded stud and nut |
| Spring base | Optional, recommended for vehicles |
| Cable | 2.5 m, 5 m or 10 m low-loss ALSR195 (lower loss than RG58), custom lengths on request |
| Termination | FME, SMA, BNC or TNC |
— Deployment Contexts
Fringe and regional sites
7 dBi in the 700 to 1000 MHz bands that carry most regional 4G
Security and fire
External antenna for alarm communicators, including Centaur and Centair 2 monitoring modules
Vehicles and base stations
Threaded stud mount, with an optional spring base for vehicles
